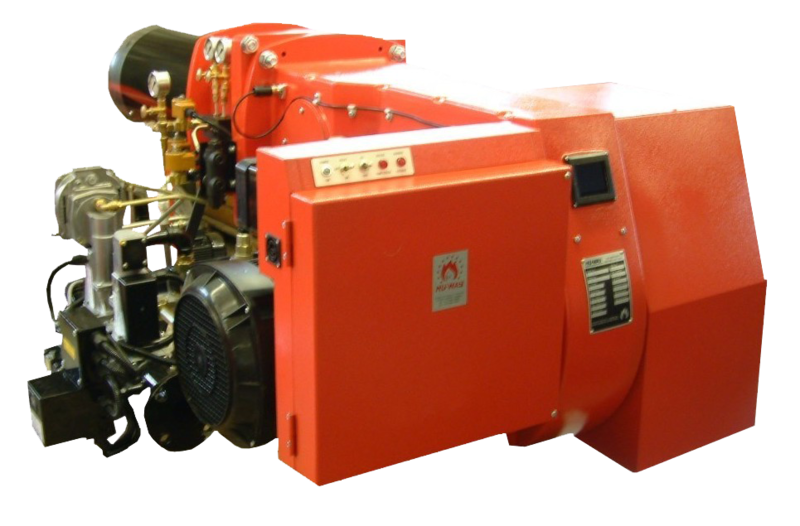

NDF180 BURNER

Brand:NUWAY

Dual fuel burners are most commonly used if the fuel source is intermittent. By having both gas and oil fuel options available, it ensures the downtime of the boiler is limited.

All N series burners are custom-built and designed and are designed for Class D (light oil) to Class G (heavy fuel oil) oil and natural gas with:

  • 2 stage high/low or modulating operations

This range is typically suited for high resistance, hot water and steam boilers.



SKU: NDF180 Category:
Additional Information
Burner type

Dual Fuel

Output

1125 – 4450

Series

DF > NDFL Series

Technical data
Output: 1125 - 4450kW Output
NDFL – DISTILLATE FUEL MODULATING
Separate Panel and Pump Unit
Burner Type NDFL180-44
CapacitykW1125-4450
Fan MotorV/ph/Hz380-420/3/50
kW15.0
Run CurrentA/each phase31.0
Cable sizemm210.0
FuseA (HRC)50
Pump MotorkW1.5
Control unitLFL
Flame monitoringUV Cell
Control OptionsModulating
Air damper motorStandard
Pressure gaugeStandard
Noise@ 1m dBA96
Gross weightkg420
Packing dimensionsl x w x h (cm)

NDFR – RESIDUAL FUEL MODULATING
Separate Panel and Puming & Heating Unit
Burner Type NDFR180-44
CapacitykW1125-4450
Fan MotorV/ph/Hz380-420/3/50
kW15.0
Run CurrentA/each phase48.0
Cable sizemm216.0
FuseA (HRC)80
Pump MotorkW1.5
Pre-HeaterkW12.0
Control unitLFL
Flame monitoringUV Cell
Control OptionsModulating
Air damper motorStandard
Pressure gaugeStandard
Noise@ 1m dBA96
Gross weightkg520
Packing dimensionsl x w x h (cm)


Key Features:

• Quick and easy installation
• Reliable and trouble free operation
• Industry standard components available
• Most components can be easily accessed allowing for easy maintenance.

Also available
• Left or right handed gas trains to reduce the need for a gas booster
• Separate oil pump unit for use when oil is not the primary fuel, designed to reduce oil pump wear when not in use
• Remote fuel changeover.

All N series burners have been designed and manufactured in accordance with EN676 and EN267
