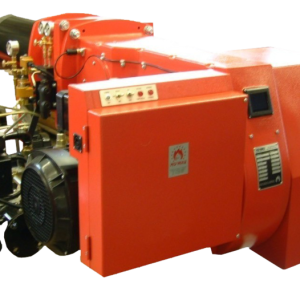

MDFL1510 BURNER
Brand:NUWAY
Dual fuel burners are most commonly used if the fuel source is intermittent. By having both gas and oil fuel options available, it ensures the downtime of the boiler is limited.
This dual fuel burner is suitable for use with natural gas, LPG, towns gas, biogas and light oil.
It can operate effectively with-
• Two stage high/low gas and oil
• Or fully modulating gas and oil operation.
| Burner type | Dual Fuel |
|---|---|
| Output | 441 – 1510 |
| Series | DF > MDFL Series |
Output: 441 - 1510 kW Output
| Type | MDFL 1510 | |
| Capacity | kW | 441-1510 |
| Motor | V/Hz | 400 / 50 |
| kW/A (Fuse) + Control fuse | 3.0 / 3 x 20 + 1 x 10 | |
| Start/Run Current | Amps | 10.5/6.5 |
| Control unit | MPA 22 | |
| Flame monitoring | UV | |
| Air damper motor | • | |
| Gross weight - burner | kg | 146 |
| Gross weight - standard gas train kg | 12 | |
Key Features:
• Quick and easy installation
• Reliable and trouble free operation
• Industry standard components available
• Most components can be easily accessed allowing for easy maintenance.
Also available
• Left or right handed gas trains to reduce the need for a gas booster
• Separate oil pump unit for use when oil is not the primary fuel, designed to reduce oil pump wear when not in use
• Remote fuel changeover.
All M Series burners are designed and manufactured in accordance with EN676 and EN267.
- MDFL 1510 1880 2505 2705 Manual 1.88 Mb (pdf)
- MDFL 1510 Spares List 150.55 Kb (pdf)
- MDFL 1510 Pumping Unit Spares List 63.3 Kb (pdf)
- MDFL 1510 Gas Train Spsres List 52.77 Kb (pdf)
- MDFL 2705 Datasheet v1 735.43 Kb (pdf)
